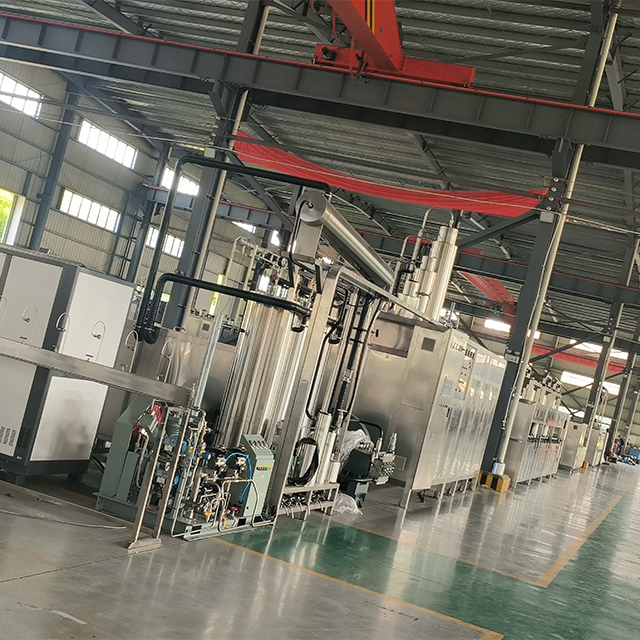

MY150L×2 Supercritical CO2 Extraction Machine
MODEL 150L X 2
With 2 extraction tank work in run, the best design for supercritical CO2 extracor , this model is attracting more and more buyers.
Customized version is available.
|
NO |
MAIN CONFIGURATION |
PARAMETERS |
|
1 |
Extraction Tank |
Volume: 150L×2, Max working pressure: 35MPa |
|
2 |
Separation Tank |
Volume:20L ×3, Max working pressure: 20MPa |
|
3 |
Pump |
CO2 high - pressure pump & carrier pump |
|
4 |
Cooling System |
Temperature range: 5°C - 10°C |
|
5 |
Heating Exchange System |
|
|
6 |
Purification System |
/ |
|
7 |
CO2 Storage Tank |
/ |
|
8 |
Safety Devices |
Pressure gauge at high - pressure pump outlet over pressure protection; extractor, separator, evaporator, dry purifier and mixer have safety valve to keep safe of system |
|
9 |
Temperature Control System |
Temperature range: Room temperature - 75°C |
|
10 |
Power Consumption |
110 KW |
|
11 |
Installation size: |
6000mm × 4800mm ×6000mm |
|
12 |
User supplied |
CO2, 3 phase power |
